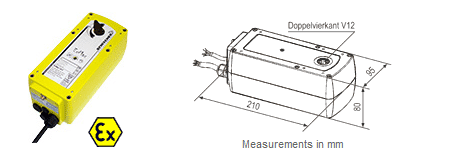

90° Quarter turn actuators size S | 5-30 N
 |
| |

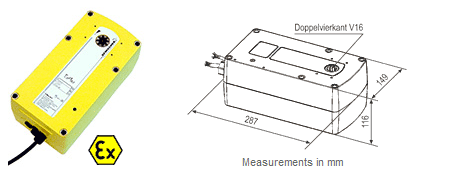

90° Quarter turn actuators size M | 30-100 Nm
 |
|
| Technical data |
ExMax size S |
RedMax size S |
| Torque* |
5-30 Nm |
30-100 Nm |
| Power supply, self adaptable |
24-230 V AC / DC |
| Frequency |
50-60 HZ |
| Angle of rotation |
95° |
| Motor running time adjustable |
3,15,30,60,120 sec/90° |
40,60,90,120,150 sec/90° |
| Spring return* |
3,10 sec/90° selectable |
3, 20 sec/90° selectable |
| Control mode* |
On-off, 3-pos, 0-10 V DC, 4-20 mA |
| Feedback* |
0-10 V DC, 4-20 mA |
| Squared shaft connection |
12 x 12 mm Squared shaft |
16 x 16 mm Squared shaft |
| Housing protection |
IP 66 |
| Ambient temperature |
-40°..+40°C (+50°C) |
| Power supply |
Cable ca. 1 m |
| Weight |
Alu ca. 3,5 kg, VA ca. 7 kg |
Alu ca. 9,5 kg |
| Explosion proof for all |
gases, mists, vapours, dust |
| Installation area |
zone 1, 2, 21, 22 |
| Certification for gases |
II2G EEx d ia IIC T6 |
| Certification for dust |
II2D IP66 T80 °C |
|
| |
| *dependent by Type |
| |
 |
| |
|
