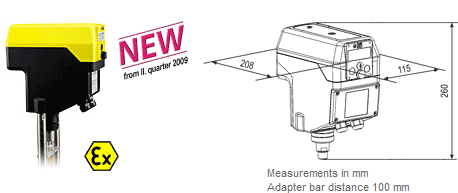

Valve actuators size S | 500-10.000 N
 |
|
| Technical data |
ExRun size S |
| Force* |
500-10.000 N |
| Power supply, self adaptable |
24-230 V AC / DC |
| Running time* |
2, 3, 4, 6, 9, 12, 15 sec. / mm |
| Spring return |
– |
| Control mode* |
On-off, 3-pos, 0-10 V DC, 4-20 mA |
| Feedback* |
0-10 V DC, 4-20 mA,
feedback potentiometer 1.000 Ω |
| Stroke |
5-60 mm, continuous mechanical limitation |
| Housing protection |
IP 66 |
| Ambient temperature |
-40°..+40°C (+50°C) |
| Power supply |
over integrated terminal box |
| Weight |
500-5.000 N ca. 7 kg, 10.000 N ca. 7,5 kg |
| Explosion proof for all |
gases, mists, vapours, dust |
| Installation area |
zone 1, 2, 21, 22 |
| Certification for gases |
II2G... |
| Certification for dust |
II2D... |
|
| |
| *dependent by Type |
| |
 |
| |
|
